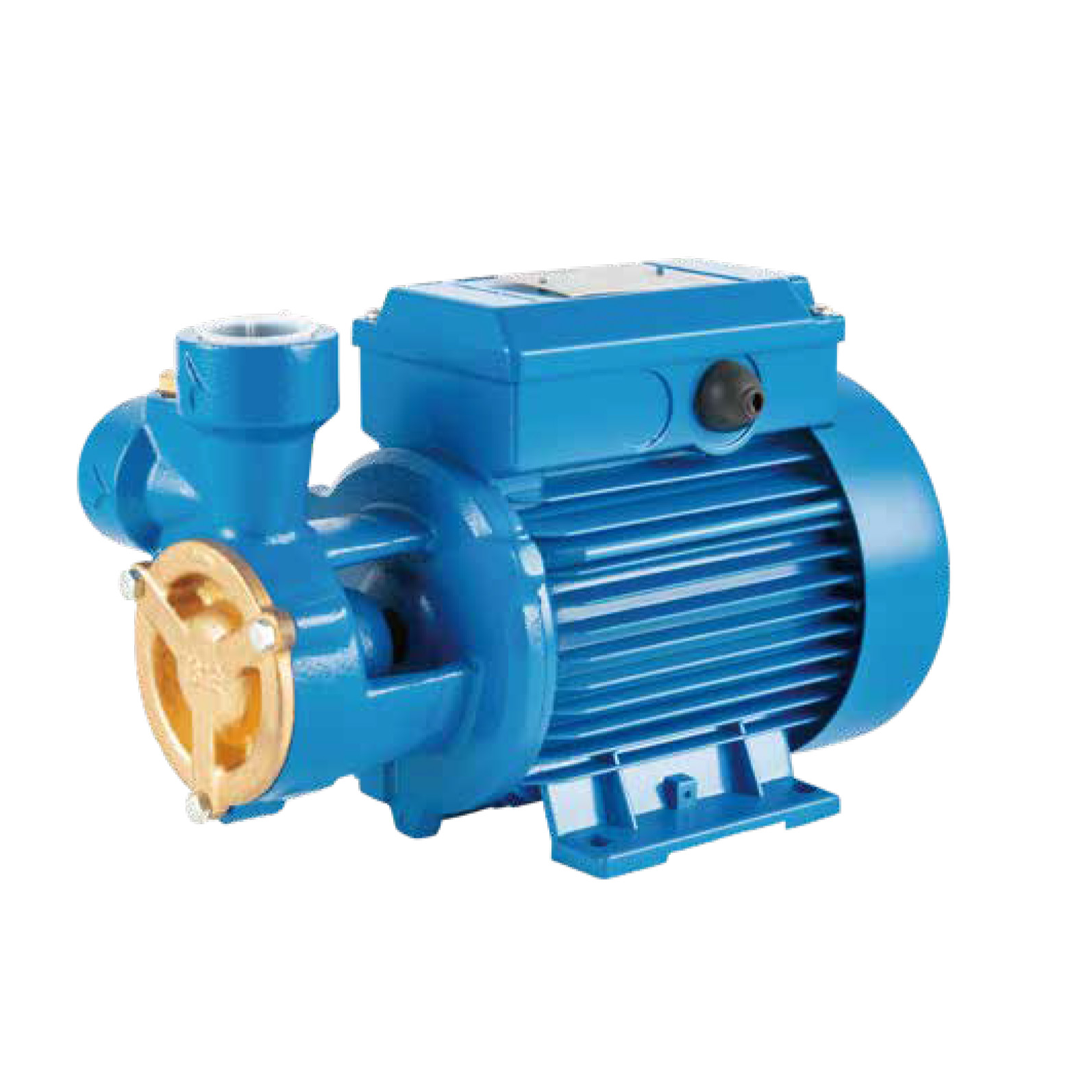

0.5HP Water Pump Prices in Dubai Self-Priming Peripheral Booster Pump for Small Air Conditioner

APPLICATION

–Suitable for pumping clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
-Suitable for farm irrigation, pressure boosting, garden watering and other applications.

OPERATING LIMITS

–Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.

MOTOR

–Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

DESIGN FEATURES

–Pump body/motor bracket: cast iron
-Impeller: Brass
-Bearing: C&U
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Carbon/Ceramic/NBR/SUS304

SPECIAL FEATURES ON REQUEST

–Anti-rust treatment for casting
-No block system
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F

elestar water pump

Add to wishlist
Category: Tags: , , , ,

Description

Close-coupled peripheral pumps (regenerative pumps) with turbine impeller. Compact, patented construction with single-piecemotor casing and pump-side wall.Protected against water entering the motor from outside.
Connections: threaded ports NPT.

APPLICATIONS

  • For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
  • For increasing network pressure (follow local specifications).
  • For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation, boiler feed.
  • High-Pressure Performance: Our 0.5HP Water Pump is designed for high-pressure applications, making it suitable for various uses such as irrigation, industrial utilities, and water treatment solutions. Its standard design ensures reliable performance in demanding environments.
  • User-Friendly Features: As an electric pump with a 0.22kw power rating, it is easy to operate and maintain. The 12-month warranty provides peace of mind for our customers.
  • Customization Options: We offer OEM and ODM services, allowing customers to customize the pump to meet their specific needs. This includes choosing from various colors and designing the pump according to their requirements.
  • Wide Range of Applications: Our pump can be used in various settings, including commercial buildings, family homes, and industrial applications. Its versatility makes it an ideal choice for different industries and users.
  • Reliable Components: The pump features a 100% copper wire AC motor and a brass impeller, ensuring durable and efficient performance.
