Description
Our Horizontal Multi Stage Centrifugal Pump is reliable and service-friendly, space-saving, suitable for slightly aggressive liquids and is Energy efficient.

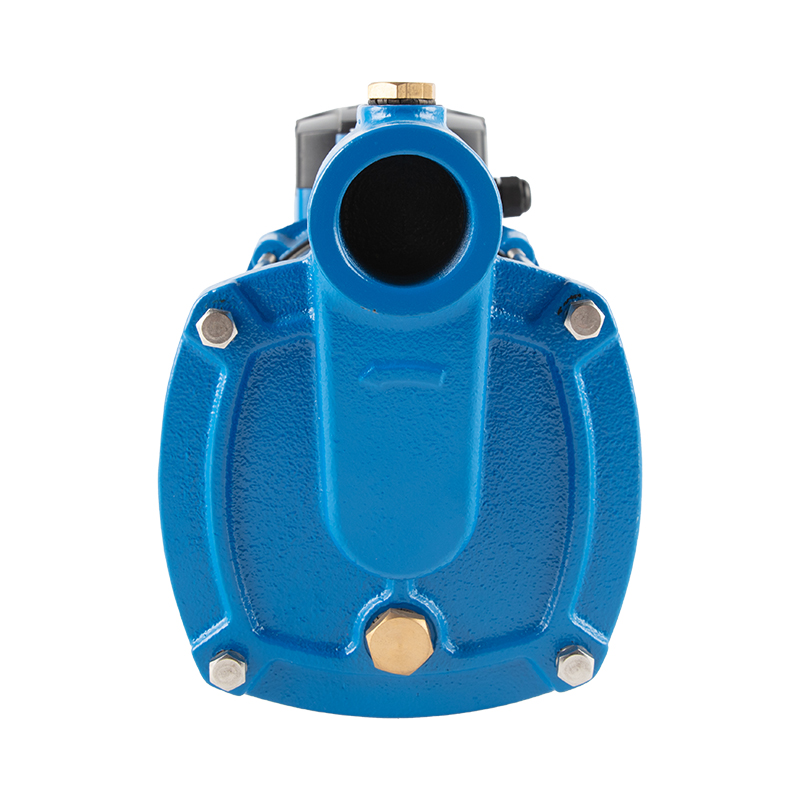

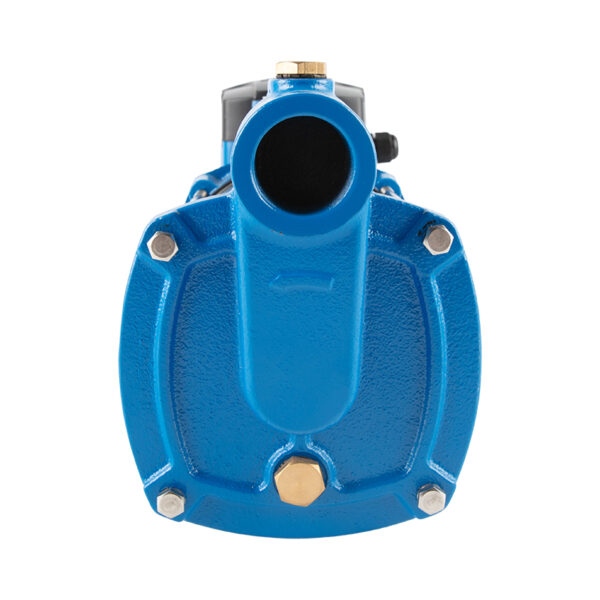

Close coupled Horizontal Multistage Pump with stainless steel parts which be driven by a standard TEFC moto, pump has axial inlet and radial outlet.
Standard supply for liquid temperature up to 600, high temperature pumps are available on request.Mechanical seal is Tungsten Carbide/Graphite, other material is available on request.
Pumps are available in SS 304 or SS 316.

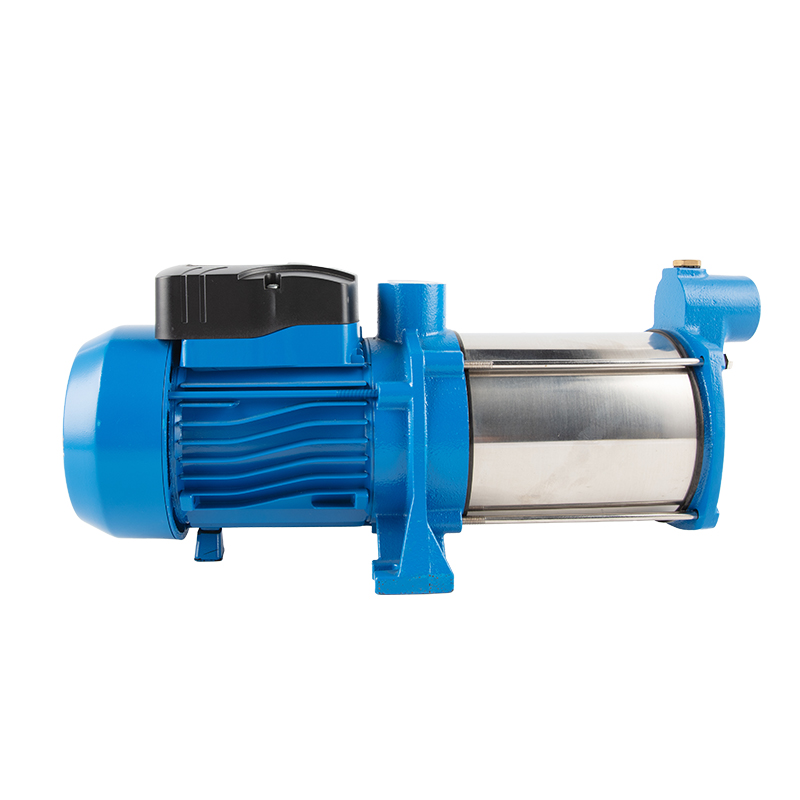

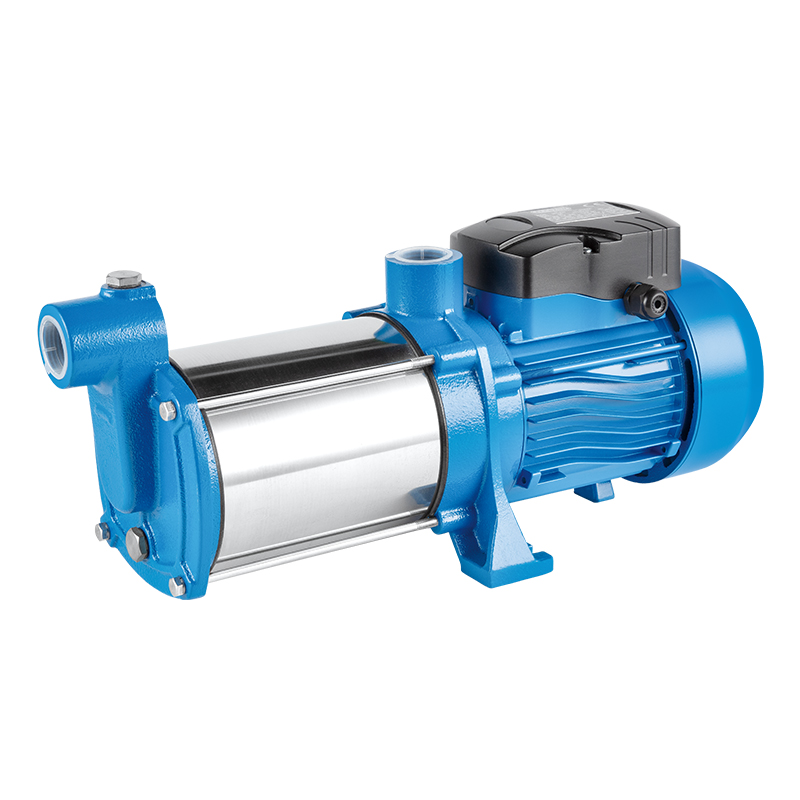

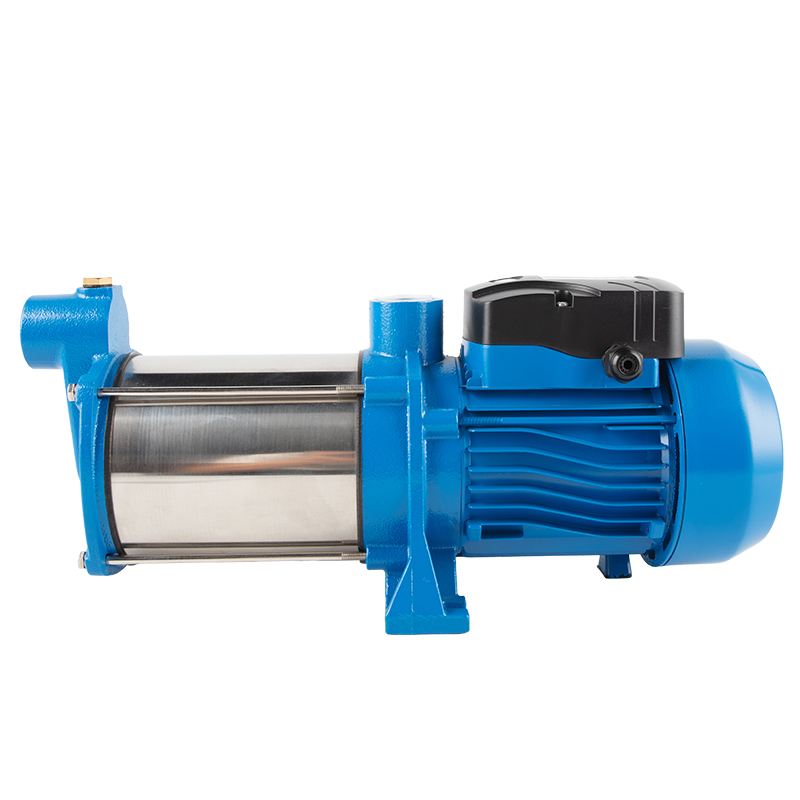

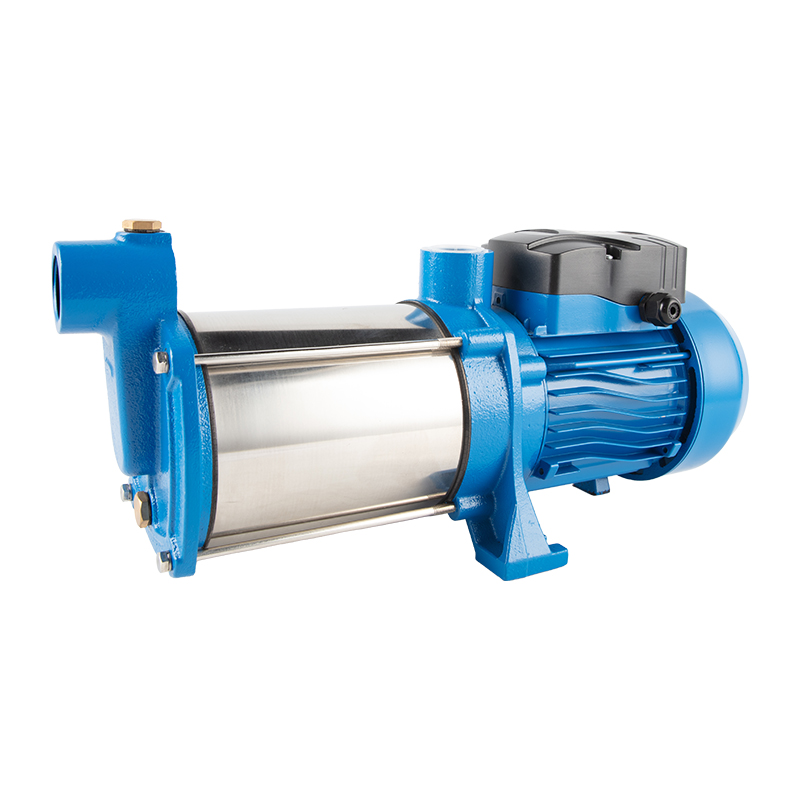

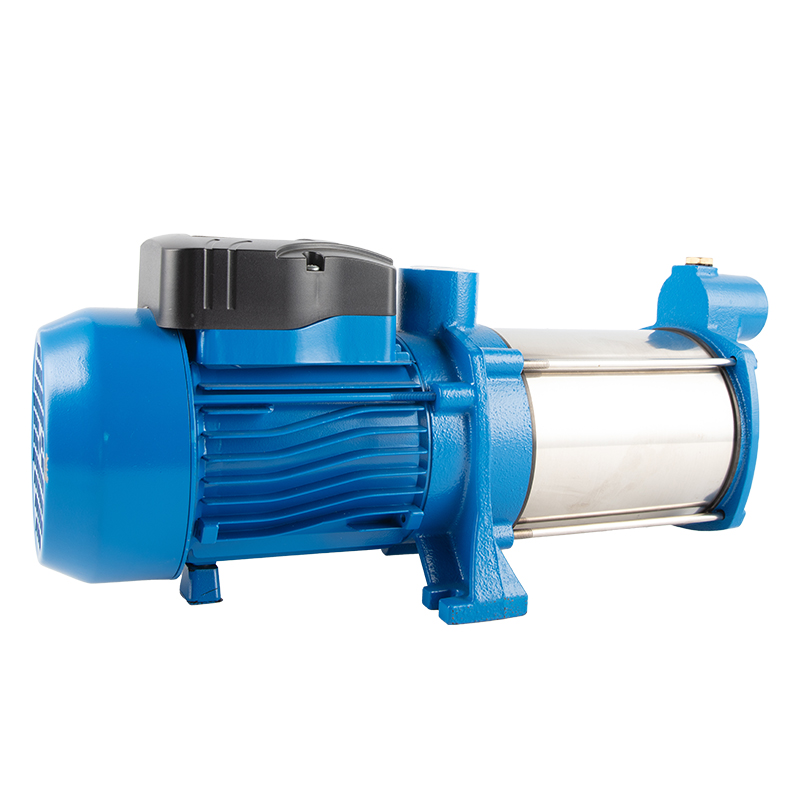

MH-B Horizontal Multistage Centrifugal Pump High Efficiency ·
Compact Structure ·
Wide Application Conveying Media:
Thin, clean, non-flammable, and non-explosive liquids without solid particles or fibers
Suitable for mineral water, distilled water, pure water, clean water, and light chemical liquids
For high-viscosity or high-density liquids, a high-power motor is recommended
Chemical compatibility should consider pH level, temperature, chlorine content, and solvent type
Main Components & Materials:
| No. | Part | Material |
|---|---|---|
| 1 | Motor | Assembly |
| 2 | Outlet | Cast Iron |
| 3 | Tie Rod | Stainless Steel AISI304 |
| 4 | Impeller | PPO |
| 5 | Guide Vane | PPO |
| 6 | Inlet | Cast Iron |
| 7 | Base | Aluminum |
| 8 | Mechanical Seal | Silicon Carbide |
| 9 | Shaft | Stainless Steel AISI304 |
Performance Curve Conditions:
Based on 2900 rpm constant speed
Water temperature: 20°C, viscosity 1 mm²/s
Complies with ISO9906:2012, Grade 3B
