Compact size: reasonable and compact structure, release more space
Electrophoresis process: waterproof,rust-proof and more durable.
Copper wire motor: high efficiency, big power and low noise.
Economical and environmental protection: easy maintenance and greatly increase the service life.

CONSTRUCT
Pump & Motor
Heavy Duty Continuous Work
Mechanical Seal:
SIC/Ceramic/Graphite
Single Phase
Shaft:
Carbon Steel/Stainless Steel
Motor Housing:
Aluminum Alloy
Insulation:
Class B /Class F
Cooling:
 External Ventilation
Protection:
IP44/IP54
Impeller:
Brass/Techno-polymer(P.P.O)/Stainless Steel
Pump Body:
Stainless Steel
Liquid temperature up to 60ºC
Compact size: reasonable  structure,release more space
Ambient temperature up to 40ºC
Electrophoresis process: waterproof, rust-proof and more durable.
Total suction lift up to 9m
Copper wire motor: high efficiency. big power and low noise.
Continuous duty
Economical and environmental protection: easy maintenance and greatly increase the service life

Description

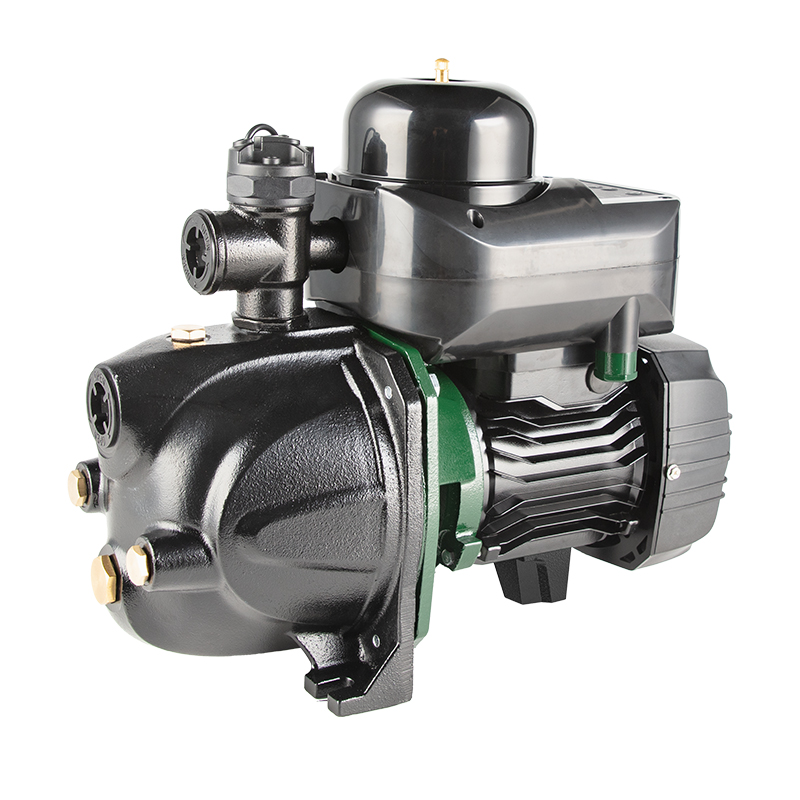

 JET self-priming centrifugal pump for domestic use, also able to run in the presence of air bubbles, with cast-iron body. Optimal for residential pressure boosting, small-medium irrigation systems and gardening applications.

Construction Features

  • JET self-priming centrifugal electric pump
  • Cast-iron motor frame and pump body
  • Internal ejector
  • Motor cooling ensured by design of fan guard

Advantages

  • Ability also to handle water containing gas
  • Structure strength and flexibility
  • Optimal motor cooling

Benefits

  • Ability to operate also in the presence of air bubbles and small quantities of sand
  • Increased safety
  • High suction capacity
  • Prevention of malfunctions and maintenance of motor efficiency
  • Standardization of components enables optimal spare parts management
