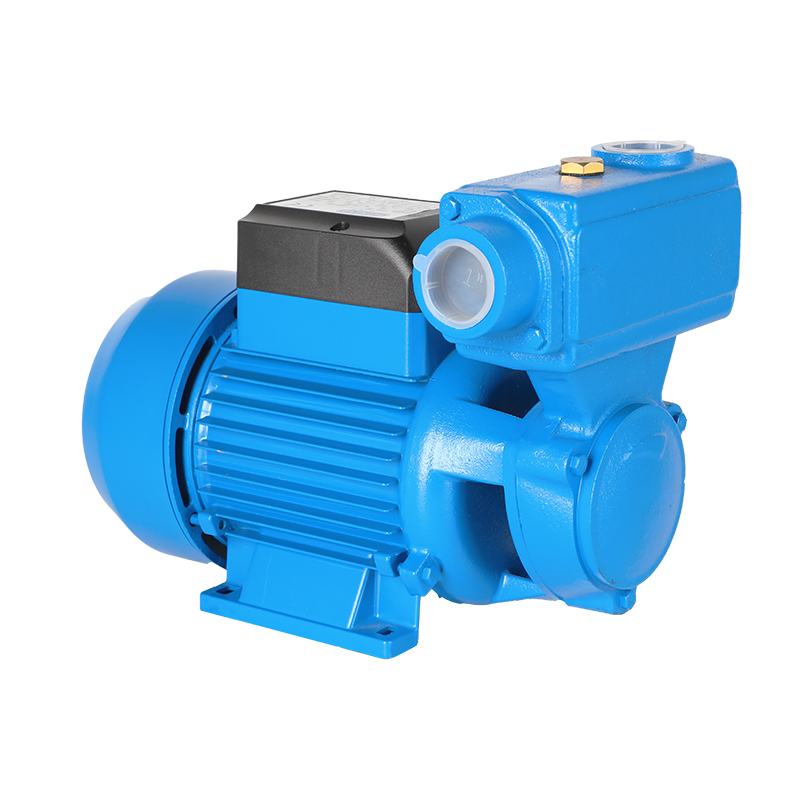

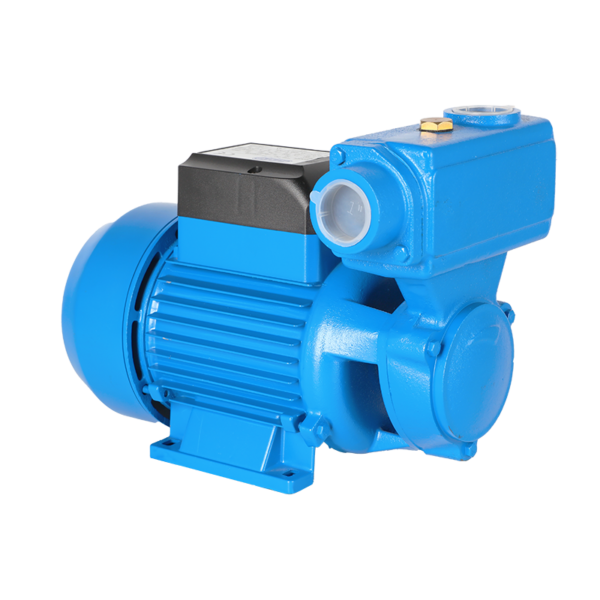

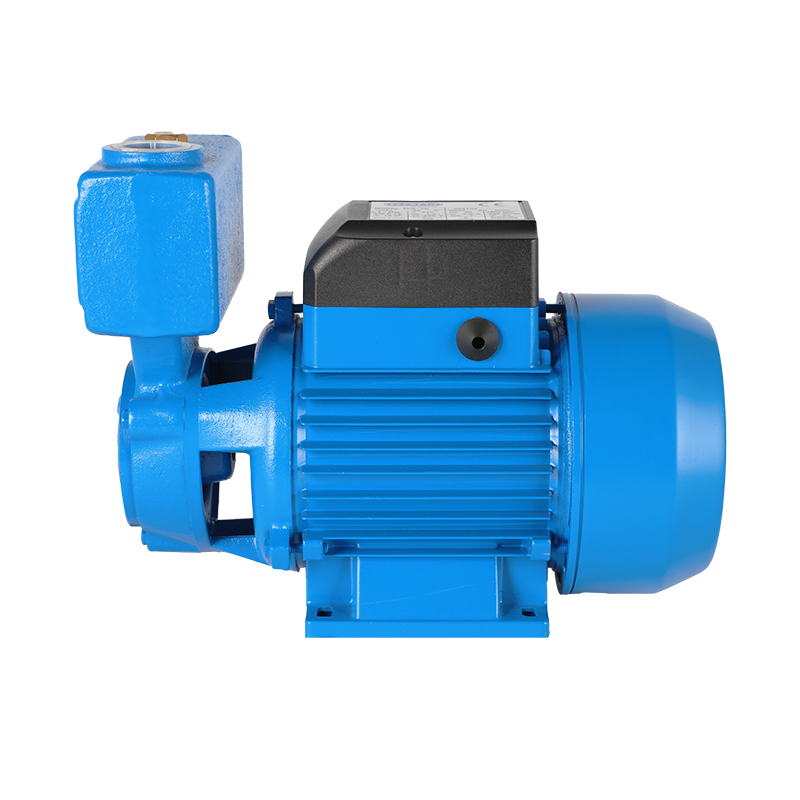

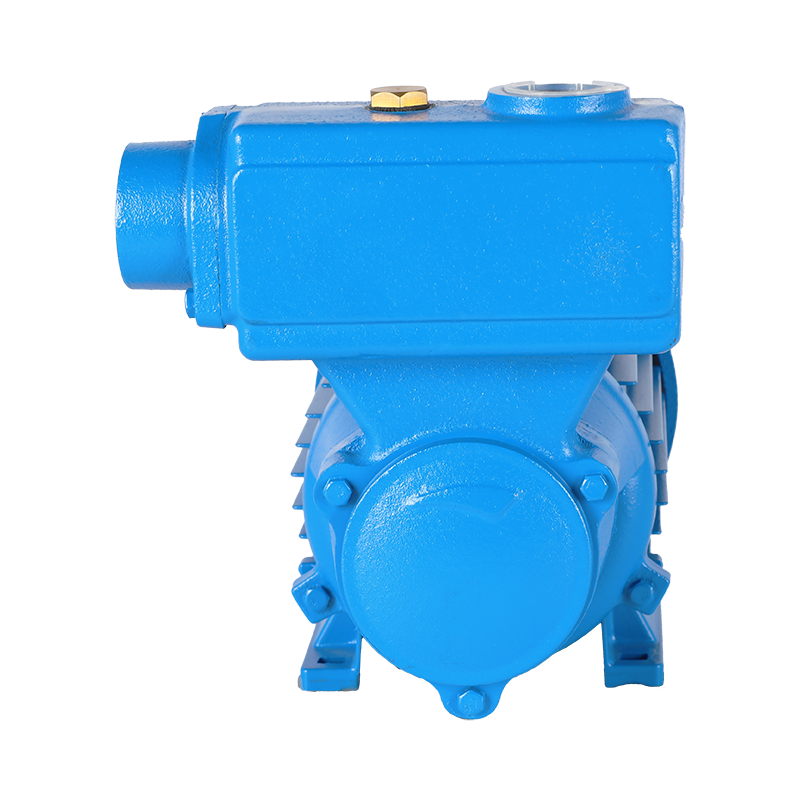

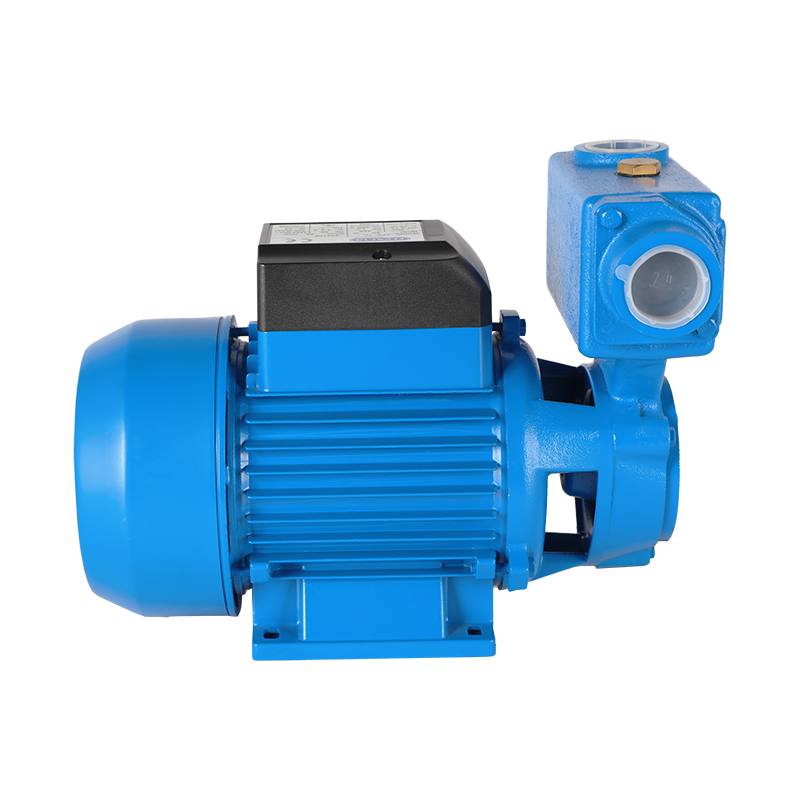

TPS Peripheral Self-Priming Pump

Home TPS Peripheral Self-Priming Pump

elestar water pump
TPS Peripheral Self-Priming Pump - Image 2
Home Pump Water High Pressure Single Phase AC Motor Booster Self-Priming Vortex Pump
Home Pump Water High Pressure Single Phase AC Motor Booster Self-Priming Vortex Pump
Home Pump Water High Pressure Single Phase AC Motor Booster Self-Priming Vortex Pump

TP series peripheral pumps are mainly used to transfer clean water or other liquid similar to water.it is suitable for domestic water supply,automatic water sprinkler system,small air conditioner system or supporting equipment,etc.

Home Pump Water High Pressure Single Phase AC Motor Booster Self-Priming Vortex Pump

APPLICATION

–Suitable for pumping clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
-Suitable for farm irrigation, pressure boosting, garden watering and other applications.

OPERATING LIMITS

–Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.

MOTOR

–Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

DESIGN FEATURES

–Pump body/motor bracket: cast iron
-Impeller: Brass
-Bearing: C&U
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Carbon/Ceramic/NBR/SUS304

SPECIAL FEATURES ON REQUEST

–Anti-rust treatment for casting
-No block system
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
Add to wishlist
Category:

Description

TP Peripheral Water Pump



With a small tank over its impeller,TPS series pumps are a good solution for selfpriming.And it is also with peripheral impeller and gain high pressure relative and its curves are steep particularly.The wide range of TPS series meets the most different operating requirements such as:Supply water from well,pool and so on,increase the water pressure in the pipe,garden sprinkling or clean washing.These pumps should be installed in a covered area,protected against the weather.

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty
