Category: Single Stage Pump Tags: nfm, water pump

Description
Inquiry

Description

PUMP

Single Phase	Heavy Duty Continuous Work
Pump body	Cast Iron
Impeller	Brass/Techno-polymer

Mechanical Seal

SIC/Ceramic/Graphite

MOTOR

Motor Housing	Aluminum Alloy
Shaft	Carbon steel/stainless steel
Insulation	ClassB/Class F
Protection	IP44/IP54
Cooling	External Ventilation

elestar water pump — NFM pumps are specially designed to achieve high delivery rates with low to medium heads for industrial and agricultural use. Two flanges with screw make it installation and maintenance simple and easy. Its volute and impeller make it able to pump water that is even fairly dirty. High delivery rates under continuous or heavy duty, making them advantageous for rain and gravity irrigation, for pumping water from lakes, rivers, wells and for a wide variety of industrial uses where high delivery rates must be achieved at low to average heads. With a single centrifugal impeller mounted on the motor shaft directly, the NFM pumps have a compact size, extremely reliable, very simple to use and almost maintenance-free. These pumps should be installed in a covered area, protected against the weather.
Pump body: Cast Iron
Impeller: Brass/Cast/Aluminum
Motor : Closed, externally ventilated
Insulation class: B and F
Protection class: IP44 or IP54
Mechanical seal: Stainless steel/Carbon-ceramic
Shaft: 45# Steel / Stainless steel
Thermal protector (if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
single phase 230V,240V,127V, 110,115V/60Hz models are available on request.

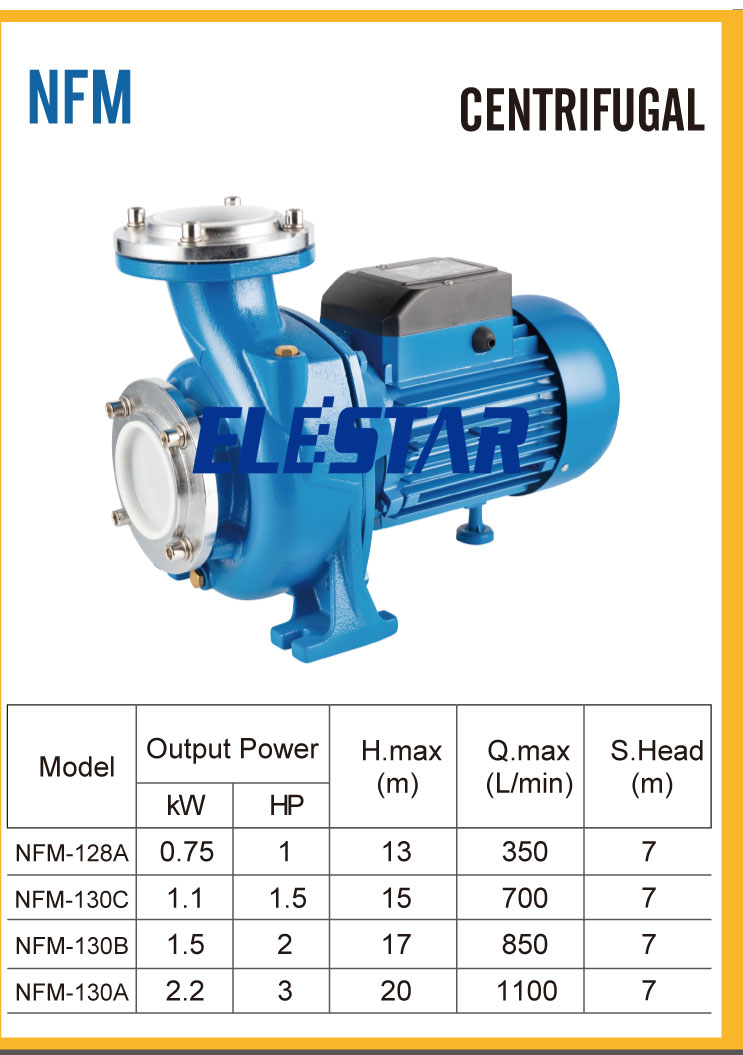

Product Power 0.55-4KW

Model	Power		Q.Max	H.Max	S.Max	In/Outlet	L×W×H	N.W.	20ft	Speed	Ampere(V)
Model	kw	HP	L/min	m	m	mm	mm	kg	pcs	r.p.m	1-220	3-380
NFM-128B	0.55	0.75	400	11	9	50×50	370x220x260	18	1200	2850	3.6	0
NFM-128A	0.75	1	400	16	9	50×50	370x220x260	22	1200	2850	4.5	0
NFM-130C	1.1	1.5	700	11	9	75×75	435x265x350	32	850	2850	7.5	3.5
NFM-130B	1.5	2	800	16	9	75×75	435x265x350	34	850	2850	9.6	4.8
NFM-130A	2.2	3	1000	19	9	75×75	435x265x350	41	850	2850	13.5	6.3
NFM-160B	3	4	1100	21	9	75×75	470x265x350	45	650	2850	15	7.6
NFM-160A	4	5.5	1300	23	9	100×100	500x310x360	52	520	2850	2
